Performance Sound Systems

Click here to view the printer friendly version.

Select Return to Main Technical Information Page

Click here for larger image. Click here for larger image. Click here for larger image.

Front of House Mixing Console


  • 2 x Klark Teknik DN-3600 Programmable Equalizer
  • 1 x Klark Teknik DN-3698 Remote Controller
  • 2 x Klark Teknik DN-7204 Delay
  • 1 x Klark Teknik DN-6000 Audio Analyzer
  • 1 x Klark Teknik DN-300 Graphic Equalizer
  • 2 x Klark Teknik DN-504 Four Channel Compressor/Limiter
  • 2 x Klark Teknik DN-514 Quad Auto Gate
  • 3 x DBX-160 Compressor/Limiter


  • Lexicon PCM-91
  • TC Electronics M3000
  • Yamaha SPX2000
  • TC Electronics D2 Digital Delay
  • Delta Lab Effectron Digital Delay

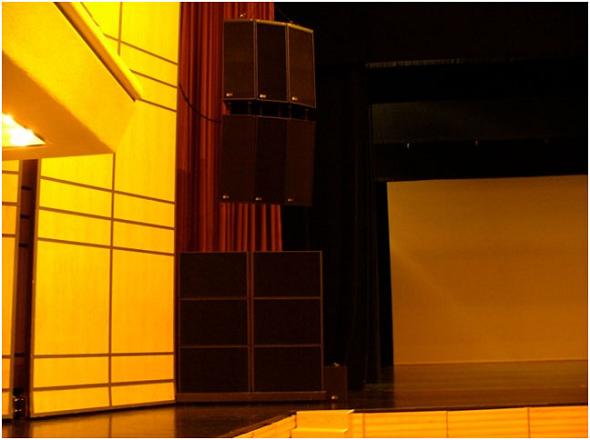

House Left and Right Speaker Arrays x 2

Centre Cluster

Front Fill

Monitor Sound System

  • Monitor Console
  • Midas XL-250
  • 52 Inputs
  • 20 Mix Buses

Monitor Equalization

  • 2 x Klark Teknik DN-300
  • 4 x Klark Teknik DN-360
  • 1 x Ashley GQ-131

Monitor Amplification

  • 6 x Bryston 4B
  • 2 x Bryston 3B
  • 2 x QSC PC3600
  • 4 x Electro-Voice DX-34A Processors
  • 1 x Electro-Voice DX-38 Processors

Monitor Enclosures

  • 12 x Electro-Voice XW-12 Bi-Amped Floor Monitors

Side Fill Sound System

Microphones and Stands

  • Complete line of professional Microphones and Stands


  • HME RW-800 four channel wireless headset system
  • Clear-Com PS-452 two channel wired system c/w 8 headsets and beltpacks
